Product Introduction

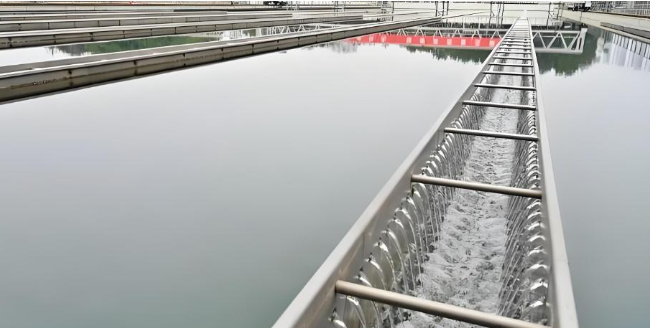

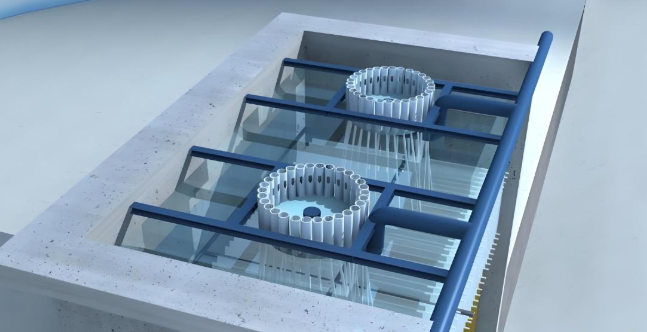

The stainless steel water distribution system is a standardized water distribution device made of high-quality stainless steel pipes and plates that are precision processed, welded, and assembled. It mainly consists of an inlet main pipe, a water distribution branch pipe, a water distribution hole/nozzle, a support bracket, a connecting flange, and sealing components. Its working principle is to optimize the pipe network layout and accurately calculate the hole size and spacing, so that the water flow is evenly sprayed from each hole under pressure, forming a stable and uniform flow field throughout the entire processing unit. According to the structural form, it can be divided into perforated tube water distribution system, nozzle water distribution system, trough water distribution system, and filter head water distribution system. According to the installation method, it can be divided into top in, side in, and bottom in types. The material mainly uses 304 and 316L food grade stainless steel, which has excellent corrosion resistance and structural strength. It can be customized according to different water quality, treatment scale, and process requirements.
Process Selection
1. Selection of application structures: Perforated pipe water distribution system is preferred for sedimentation tank and clarification tank inlet, with simple structure and uniform water distribution; Filter tanks and filters should use filter head type water distribution systems or perforated pipe type water distribution systems; The biological filter and aeration tank adopt a nozzle type water distribution system, which has a wide water distribution range and good atomization effect.
2. Selection based on water quality conditions: 304 stainless steel material is used for conventional municipal water supply, sewage, and general industrial wastewater treatment; 316L stainless steel material is selected for the treatment of industrial wastewater containing highly corrosive media such as chloride ions and acid bases; Industries with high hygiene requirements such as food, pharmaceuticals, and drinking water use food grade 304/316L stainless steel materials.
3. Selection based on processing scale: Small processing units (processing capacity<100m ³/h) should use single or double tube perforated water distribution systems; Large and medium-sized processing units (with a processing capacity of ≥ 100m ³/h) should use branched or ring-shaped water distribution systems with multiple parallel pipes.
4. Select according to the direction of water flow: For upward flow processes (such as biofilters and ion exchangers), choose bottom inlet water distribution systems; Downward flow processes (such as sedimentation tanks and ordinary rapid filtration tanks) use top inlet or side inlet water distribution systems.
